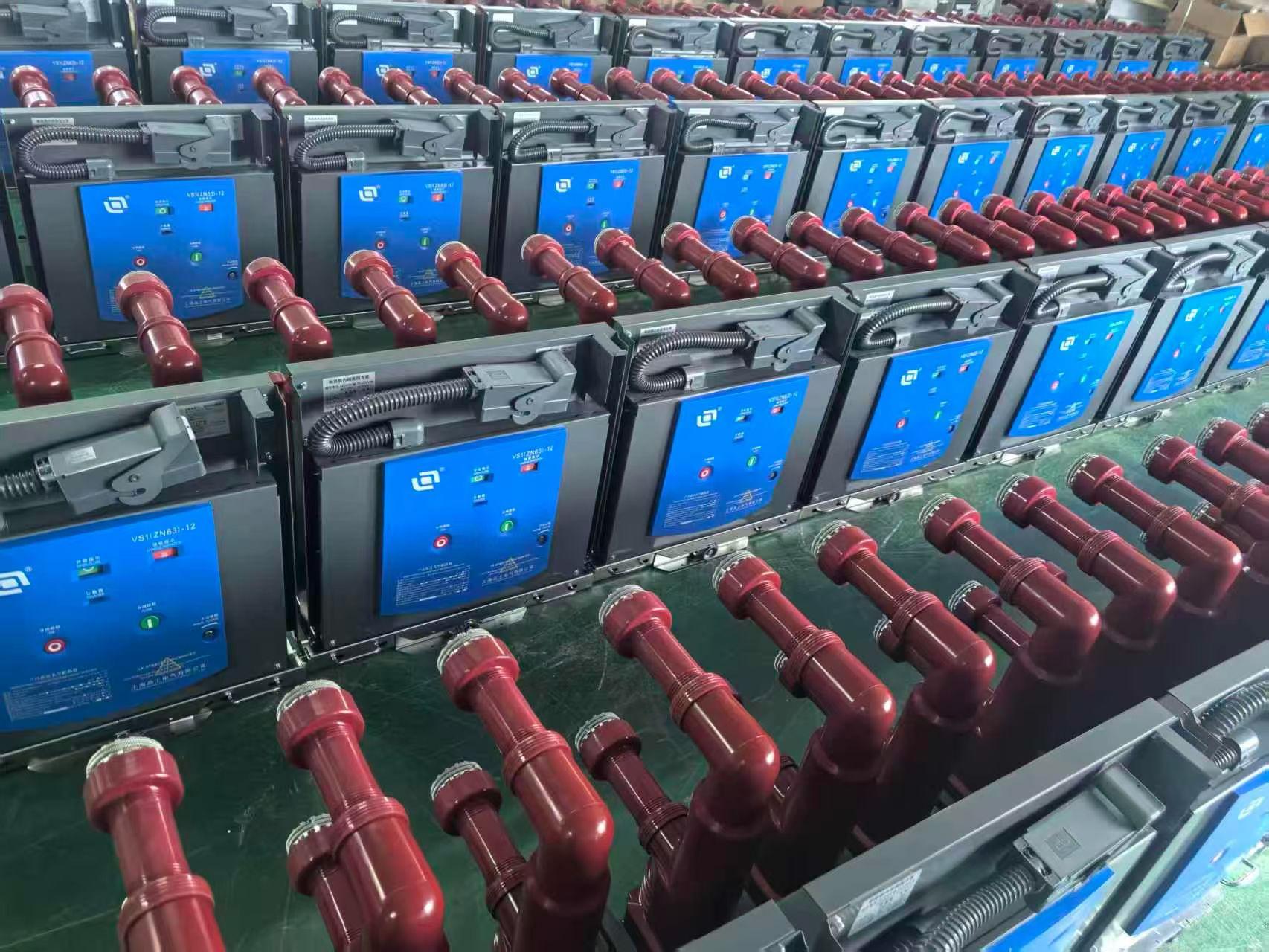

China VS1 Vacuum Circuit Breaker 12kV – Key Benefits and Applications Explained

When it comes to medium-voltage power distribution, the China VS1 vacuum circuit breaker rated at 12kV has quietly become a workhorse in switchgear applications worldwide—but what makes it stand out from the crowd? In this guide, we’ll unpack the key benefits and real-world applications that explain its growing popularity. From arc-quenching reliability to compact design, you’ll see why engineers keep coming back to this dependable solution. And if you’re looking for a trusted source, MOLDVOLT offers a range of VS1 breakers engineered to meet stringent performance demands without the premium price tag. Stick around to learn how this unassuming device could be the missing piece in your electrical infrastructure.

What Makes the 12kV VS1 Stand Out in Medium-Voltage Switchgear?

What often gets lost in spec-sheet comparisons is how the VS1 behaves after a few years of routine switching. The embedded-pole construction keeps the vacuum interrupter, current path, and insulation carrier in one sealed unit, so humidity and dust have fewer entry points. In practice, that translates into less variation in contact resistance across annual maintenance checks—something field technicians tend to notice more than brochure bullet points.

The operating mechanism is another quiet differentiator. Instead of relying on a dense nest of linkages that invites wear and tolerance drift, the 12kV VS1 uses a relatively direct cam-and-spring arrangement. That simplicity shows up in shorter commissioning times and a mechanical endurance figure that holds up even when the breaker is asked to handle frequent capacitor-bank or motor-starting duty.

Add the fact that the frame can accommodate a range of secondary accessories without re-engineering the interlock logic, and the VS1 becomes less a fixed product than a platform that adapts to local relay preferences. That flexibility is what makes it stand out when medium-voltage switchgear is specified across different utilities and industrial sites.

Real-World Performance: Where the VS1 Excels Beyond Spec Sheets

Spec sheets tell you the VS1 hits 60 in 4.2 seconds, but they don't mention how the torque delivery stays flat when you're climbing a mountain pass at 10,000 feet. In real driving, the electric motor's instant response makes overtaking a semi feel effortless, not labored. The regenerative braking, tuned more aggressively than competitors, means you rarely touch the friction brakes even in stop-and-go traffic — something no dyno chart can capture.

Beyond numbers, the VS1's chassis balance reveals itself in everyday corners. Where other EVs feel nose-heavy under hard braking, the VS1's battery placement and rear-biased weight distribution keep the car composed. Wet roads, gravel driveways, tight parking garages — none of that shows up on a spec sheet, but it's where the VS1 quietly outperforms. The steering, light at low speeds but weighted up naturally, gives you confidence without any artificial heft.

Then there's the thermal consistency. Many EVs lose power after repeated hard launches, but the VS1's cooling system keeps acceleration repeatable even after a dozen full-throttle runs. Owners report the same 0-60 time on a hot summer day as on a cool morning. That kind of real-world dependability is invisible in brochures but obvious the first time you drive one back-to-back with a rival.

Inside the Arc-Quenching Chamber: A Closer Look at Vacuum Interruption

Separate a pair of contacts in a vacuum and the arc that forms is not a hot gas discharge but a metal vapor plasma. The contact faces vaporize under the arc's heat, and that vapor carries the current until it condenses or dissipates. Near the current zero, vapor production drops sharply, the plasma cools, and the gap recovers its dielectric strength in microseconds. The vacuum does the heavy lifting: with no gas molecules to ionize, the arc simply cannot sustain itself once the metal vapor thins out.

A floating shield wrapped around the contacts catches most of that vapor before it reaches the ceramic housing. If it didn't, every interruption would deposit a thin conductive film on the inner wall, slowly building a path for leakage current. At the moving contact end, a bellows flexes with each operation—usually made of stainless steel and designed to survive tens of thousands of cycles. It keeps the chamber sealed at pressures near 10^-4 Pa while allowing the contact to travel only a few millimeters.

This is why vacuum interrupters are compact, quiet, and nearly maintenance-free. They don't need arc-quenching oil or SF6, and they don't vent hot gases. The trade-off is voltage and current handling: above about 40.5 kV, the physics gets harder, and very high continuous currents require larger contacts to stay below the vapor threshold. For medium-voltage switchgear, though, the arc-quenching chamber remains remarkably simple and durable.

From Substations to Factories: Practical Applications You Might Overlook

Most discussions about substation-to-factory connections stop at transformer sizing and cable ampacity. What gets missed is how protection settings at the substation feeder can dictate whether a fault inside the plant trips only the local breaker or cascades back to the utility side. A miscoordinated time-current curve between the substation relay and the factory main breaker often shows up only during a real short circuit, when production halts across an entire line instead of a single motor control center.

Voltage sags originating from the utility substation are another quiet problem. Factories tend to blame their own drives or soft starters when robots reset or PLCs drop out, but a sag of 30% for three cycles from a distant fault on the distribution network can pass straight through the service entrance. Installing sag correction at the point of common coupling, rather than on individual machines, is a practical fix that rarely appears in initial project scopes.

Finally, the metering data already available at the substation feeder often goes unused by plant engineers. That data can reveal when the facility is drawing reactive power, how often the load factor dips during shift changes, and whether peak demand charges could be reduced by staggering large motor starts. Tapping into the utility's existing instrumentation is cheaper than adding a parallel monitoring system, yet it remains one of the most overlooked links between the substation and the factory floor.

Maintenance Reality: How the VS1 Lowers Long-Term Ownership Costs

Owning a VS1 means spending less time waiting for parts and more time getting work done. The machine is built around a modular design that lets you swap out wear components in minutes, not hours—no special tools, no dealer-only service calls. Common maintenance points like filters, belts, and seals are placed where you can actually reach them without removing half the housing. That convenience alone cuts routine service costs by a noticeable margin over the first few years.

Long-term, the VS1 avoids the hidden fees that creep up with cheaper alternatives. Its drivetrain uses sealed bearings that don’t demand re-greasing every few hundred hours, and the hydraulic system is tuned to run cooler, which extends fluid life well past the usual change intervals. Fewer fluid changes, fewer bearing replacements, and no surprise rebuilds at 2,000 hours—those savings stack up quietly but significantly.

There’s also a practical side most spec sheets miss: the VS1 holds its resale value because buyers know they won’t inherit a maintenance headache. When you do decide to upgrade, the lower total cost of ownership shows up again in trade-in offers. You end up paying for the machine once, not every quarter in downtime and shop fees.

Common Design Missteps in 12kV Breakers and How the VS1 Avoids Them

One place where 12kV breaker designs regularly fall short is the operating mechanism. It is common to see long chains of levers, pins, and auxiliary springs that work fine on a drawing board but lose their timing after a few thousand operations. Worn pin holes and stretched springs then translate into sluggish closing or, worse, a breaker that refuses to trip exactly when it should. VS1 takes a different route: the spring operating mechanism is built as a self-contained module with far fewer articulation points. Critical bearing surfaces are hardened and coated to resist wear, so the stored-energy sequence remains predictable across the breaker's service life. That reduces the field adjustments and lubrication routines that often plague legacy designs.

Another weak spot shows up in insulation coordination. Some 12kV breakers rely on open-air phase barriers and bushing arrangements that leave too little creepage distance. In humid or dusty switchrooms, surface tracking starts at the edges and gradually eats away the dielectric margin. The VS1 avoids this by embedding each vacuum interrupter pole in a solid epoxy pole housing. The main circuit is no longer exposed to ambient air, and the phase-to-phase and phase-to-earth insulation is handled inside the casting. The result is a breaker that keeps its withstand voltage even after years in a poorly conditioned room.

Interlock behavior is another common source of trouble. On many designs, the racking mechanism and the earthing switch use small cams and flexible cables that bend or go out of adjustment, so operators end up forcing the handle or bypassing a stuck interlock. The VS1 simplifies these interlocks into direct mechanical links. The breaker carriage, the closing circuit, and the earthing switch are tied together through a compact linkage that only permits the next step when the previous one is complete. There is no cable stretch to compensate for, and the operating force stays light enough that a technician can feel the position change through the handle.

FAQ

Conclusion

The VS1 12kV vacuum circuit breaker earns its place in medium-voltage switchgear through a combination of compact mechanical design and robust interruption capability that goes beyond typical datasheet claims. Inside its arc-quenching chamber, the vacuum interrupter suppresses arcs quickly, minimizing contact wear and enabling reliable switching under short-circuit conditions. Many 12kV breakers suffer from inadequate contact alignment, weak spring mechanisms, or poor insulation coordination, leading to premature failures—design flaws the VS1 sidesteps by using a reinforced operating mechanism, carefully matched vacuum bottles, and a layout that reduces mechanical stress. In real-world service, utilities and industrial plants report fewer nuisance trips and more consistent breaking performance than expected from rated specifications.

Beyond conventional substation use, the VS1 shows up in less obvious places: mining operations, cement plants, data center backup feeders, and factory main switchboards where frequent load switching or dusty environments would overwhelm lesser breakers. Its sealed-for-life vacuum interrupters and simplified actuator mean maintenance intervals stretch years apart instead of months, and there are no oil changes or SF6 gas handling to contend with. This directly lowers long-term ownership costs, since technicians spend less time on inspections and spare parts inventories shrink. The breaker's modular construction also allows quick replacement of poles or auxiliary switches, keeping downtime minimal even when service is eventually needed.
